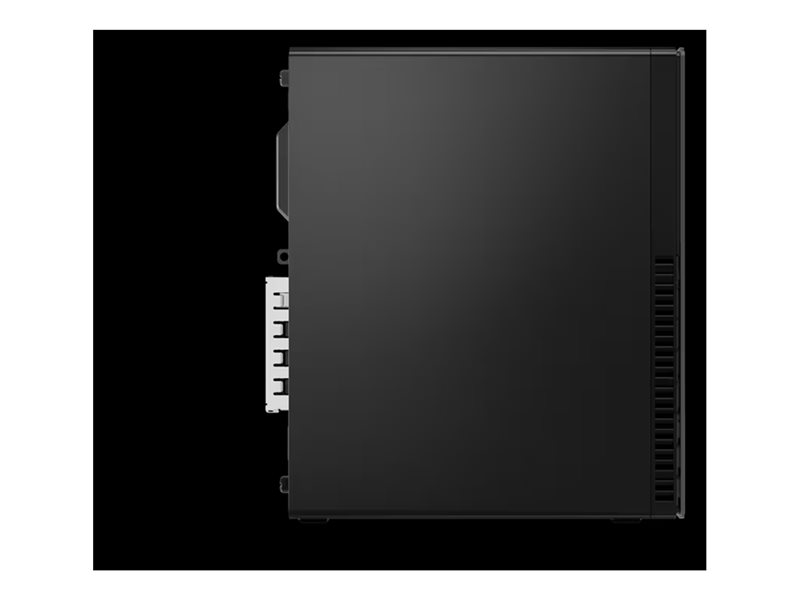

Lenovo - Lenovo ThinkCentre M75s Gen 2 11R8

SFF - Ryzen 5 Pro 5650G / 3.9 GHz - RAM 8 GB - SSD 256 GB - TCG Opal Encryption, NVMe - DVD-Writer - Radeon Graphics - GigE - Win 11 Pro - monitor: none - keyboard: US - black - TopSeller

Lenovo
11R8001XUS
0196119493427
N/A
New

Price: $644.00

Total Available: 579

Product Description

Additional Details

What's Included

Specifications

Main Specifications
Product Description Lenovo ThinkCentre M75s Gen 2 - SFF - Ryzen 5 Pro 5650G 3.9 GHz - 8 GB - SSD 256 GB - US
Type Personal computer - small form factor
Localization Language: English / region: United States
Processor AMD Ryzen 5 Pro 5650G / 3.9 GHz (4.4 GHz) (6-core)
Cache Memory 16 MB L3 cache
Cache Per Processor 16 MB
RAM 8 GB (installed) / 128 GB (max) - DDR4 SDRAM - non-ECC
Storage Controller SATA
Hard Drive SSD 256 GB - PCI Express x4 - M.2 2280 - TCG Opal Encryption, NVM Express (NVMe)
Optical Storage DVD-Writer
Graphics Controller AMD Radeon Graphics shared video memory (UMA)
Networking GigE
Keyboard US
Power (50/60 Hz)
OS Provided Windows 11 Pro
Color Black
Dimensions (WxDxH) 3.7 in x 11.7 in x 13.4 in
Weight 11.68 lbs
Manufacturer Selling Program TopSeller
Environmental Standards TCO Certified Desktops 8, ENERGY STAR Qualified EPEAT Silver
Manufacturer Warranty Limited warranty - 3 years - on-site
General
Type Personal computer
Product Form Factor Small form factor
Built-in Devices Speaker
Embedded Security Discrete Trusted Platform Module (TPM 2.0) Security Chip
Color Black
Localization Language: English / region: United States
Expansion / Connectivity
Bays 1 (total) / 0 (free) x external 5.25" Slim Line ¦ 1 (total) / 1 (free) x internal 3.5"
Slots 1 (total) / 1 (free) x PCIe 3.0 x16 - low-profile ¦ 1 (total) / 1 (free) x PCIe 3.0 x1 - low-profile ¦ 1 (total) / 1 (free) x M.2 Card (for WLAN) ¦ 1 (total) / 0 (free) x M.2 Card (for SSD)
Interfaces 2 x USB 3.2 Gen 2 (2 in front) ¦ 2 x USB 3.2 Gen 1 (2 in front) ¦ 1 x USB-C 3.2 Gen 1 (1 in front) ¦ 1 x headphones/microphone (1 in front) ¦ 4 x USB 2.0 ¦ 1 x serial ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x DisplayPort 1.4 ¦ 1 x HDMI ¦ 1 x audio line-out ¦ 1 x microphone (1 in front)
Manufacturer Warranty
Service & Support Limited warranty - 3 years - on-site
Miscellaneous
Included Accessories Vertical stand
Theft/Intrusion Protection Security lock slot (cable lock sold separately), chassis intrusion switch
Security Slot Type Kensington security slot
Compliant Standards RoHS, Energy-Related Products (ErP) Lot 3, MIL-STD-810H
Manufacturer Selling Program TopSeller
RAM
Installed Size 8 GB / 128 GB (max)
Technology DDR4 SDRAM - non-ECC
Effective Memory Speed 3200 MHz
Rated Memory Speed 3200 MHz
Form Factor DIMM 288-pin
Slots 4 (total) / 3 (empty)
Features Unbuffered, dual channel memory architecture
Configuration Features 1 x 8 GB
Networking
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Features Wake on LAN (WoL)
Compliant Standards DASH 1.1
Power
Device Type Power supply
Voltage Required AC 100-240 V (50/60 Hz)
Power Provided 260 Watt
Efficiency 85%
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 95 °F
Humidity Range Operating 20 - 80%
Storage Controller
Type 1 x SATA
Cache Memory
Installed Size L3 cache - 16 MB
Cache Per Processor 16 MB
Optical Storage
Type DVD-Writer - SATA
Monitor
Monitor Type None.
Graphics Controller
Graphics Processor AMD Radeon Graphics shared video memory (UMA)
Video Interfaces HDMI, DisplayPort
Max Monitors Supported 3
Audio Output
Compliant Standards High Definition Audio
Operating System / Software
OS Provided Windows 11 Pro English
Hard Drive
Type SSD - M.2 2280
Capacity 1 x 256 GB
Interface Type PCI Express x4
Features TCG Opal Encryption, NVM Express (NVMe)
Input Device
Type Mouse, keyboard
Dimensions & Weight
Width 3.7 in
Depth 11.7 in
Height 13.4 in
Weight 11.68 lbs
Keyboard
Keyboard Name Lenovo Traditional Keyboard
Interface USB
Localization & Layout US
Mouse
Mouse Name Lenovo Calliope Mouse
Interface USB
Environmental Standards
TCO Certified TCO Certified Desktops 8
EPEAT Compliant EPEAT Silver
ENERGY STAR Certified Yes
ENERGY STAR Version 8.0
Processor / Chipset
CPU AMD Ryzen 5 Pro 5650G
Clock Speed 3.9 GHz
Max Turbo Speed 4.4 GHz
Number of Cores 6-core
CPU Qty 1
Max CPU Qty 1
L2 cache 3 MB
Chipset Type AMD PRO 565
