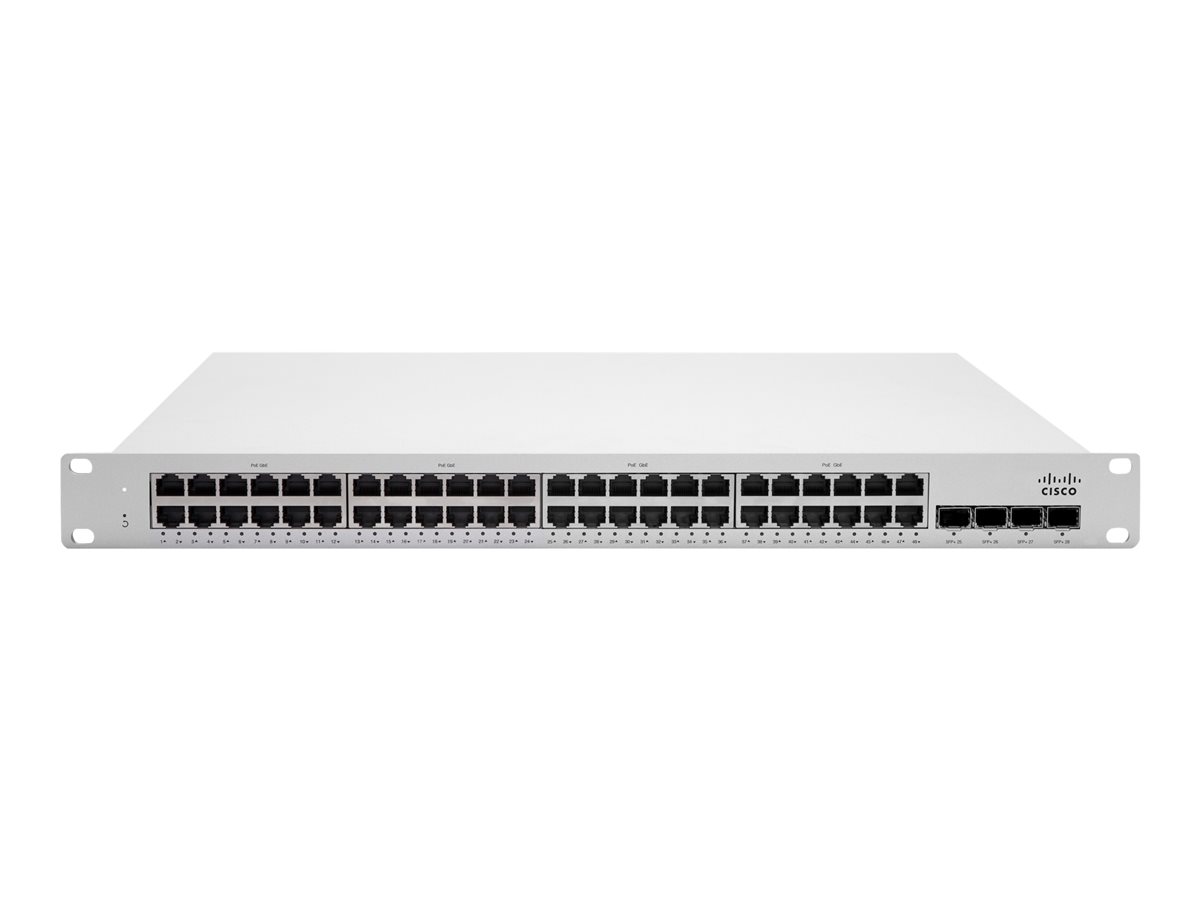

Cisco Meraki - Cisco Meraki Cloud Managed MS225-48FP
Switch - managed - 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) - rack-mountable - PoE+ (740 W)
Cisco Meraki
MS225-48FP-HW
0810979012801
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Cisco Meraki Cloud Managed MS225-48FP - switch - 48 ports - managed - rack-mountable |
| Device Type | Switch - 48 ports - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 740 W |
| Remote Management Protocol | SNMP |
| Features | Flow control, DHCP support, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, E-mail alert, Broadcast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Quality of Service (QoS), Jumbo Frames support, SMS alert, IPv4 support, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), static routing, crossover detection, cloud managed, Bridge protocol data unit (BPDU), Role-Based Access Control (RBAC), Cisco Discovery Protocol, Root Guard |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at |
| Power | AC 120/230 V (47 - 63 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 19.1 in x 13.4 in x 1.7 in |
| Weight | 9.63 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 48 ports - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 740 W |
| Max Units In A Stack | 8 |
| Remote Management Protocol | SNMP |
| Authentication Method | RADIUS |
| Features | Flow control, DHCP support, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, E-mail alert, Broadcast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Quality of Service (QoS), Jumbo Frames support, SMS alert, IPv4 support, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), static routing, crossover detection, cloud managed, Bridge protocol data unit (BPDU), Role-Based Access Control (RBAC), Cisco Discovery Protocol, Root Guard |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at |
| Expansion / Connectivity | |
| Interfaces | 48 x 1000Base-T RJ-45 PoE+ ¦ 4 x 10Gbit LAN SFP+ uplink |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| MTBF | 320,555 hours |
| Compliant Standards | CSA, IC, FCC, RoHS, RCM |
| Power | |
| Power Device | Internal power supply |
| Power Redundancy | Optional |
| Voltage Required | AC 120/230 V (47 - 63 Hz) |
| Features | Redundant Power System (RPS) connector |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 19.1 in |
| Depth | 13.4 in |
| Height | 1.7 in |
| Weight | 9.63 lbs |
